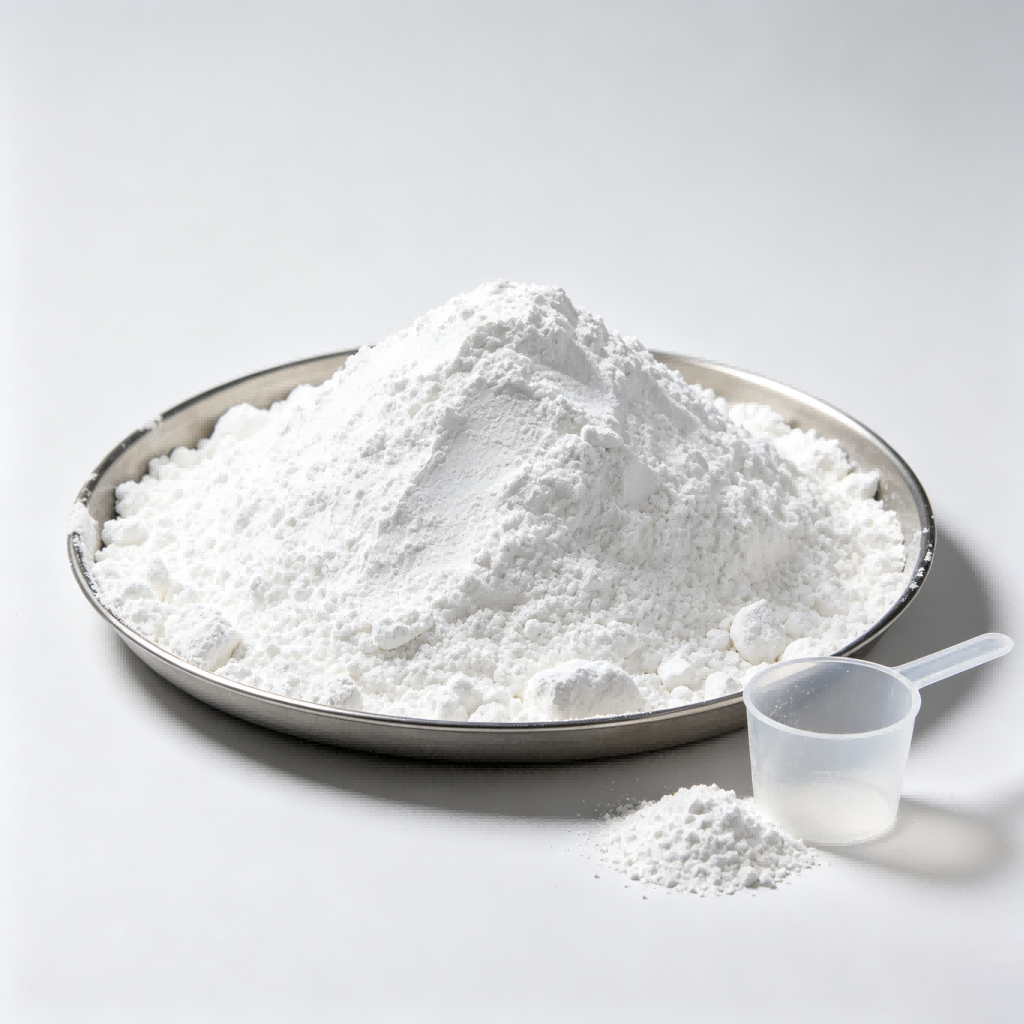

Thermoplastic road marking materials with bright color, good quality, high retroreflectivity and outstanding weather resistance, offering timely and economical safety solutions for local road projects. Thermoplastic road marking products are essential for road construction in every country and region, and market demand keeps rising. We supply turnkey customized factory and technology solutions from start-up to mass production, matching your available resources and market trends.
Explore the Process
A streamlined workflow engineered for consistency, efficiency, and premium quality.
Objective: Mix powder and liquid raw materials into uniform slurry.

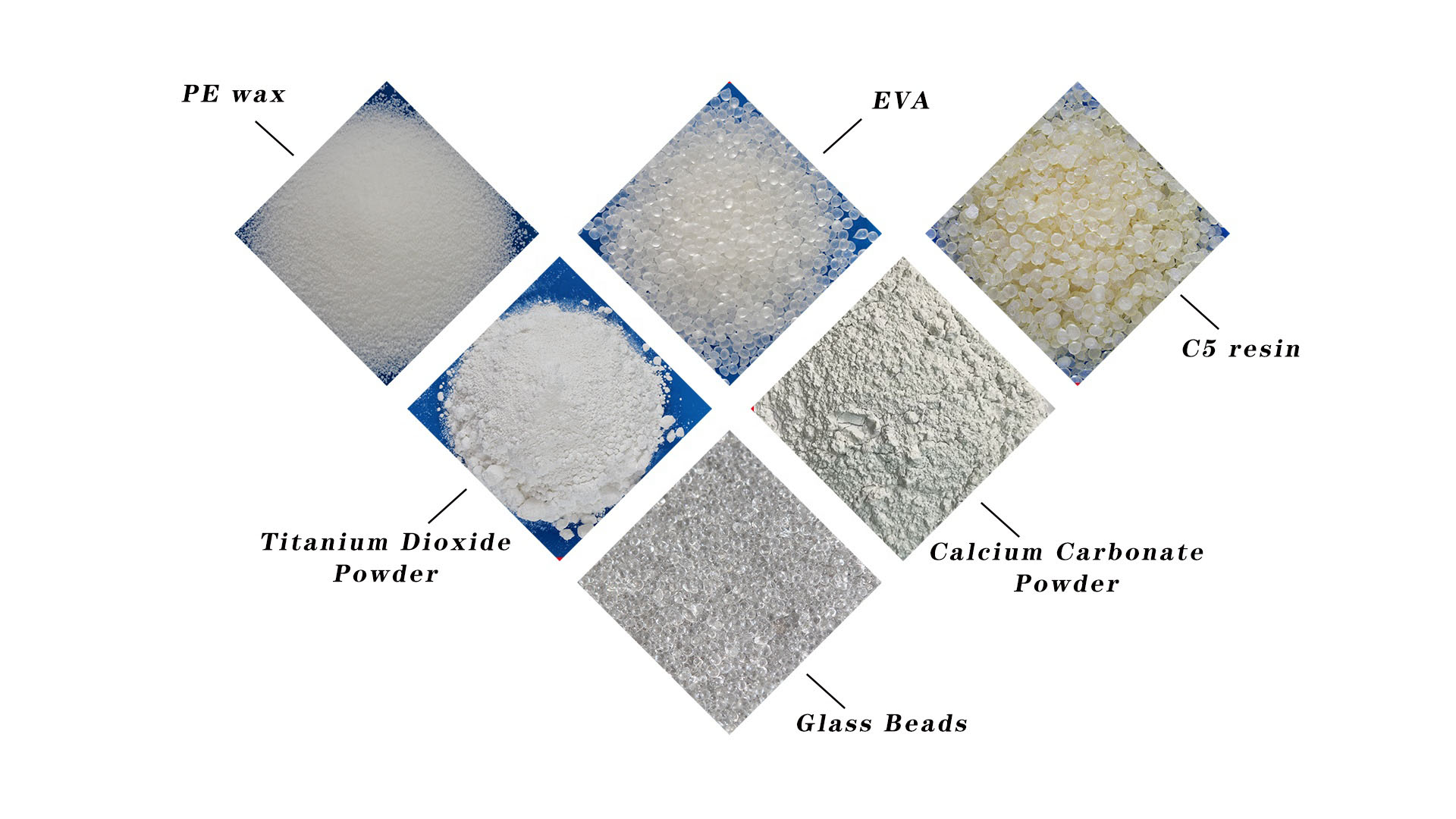

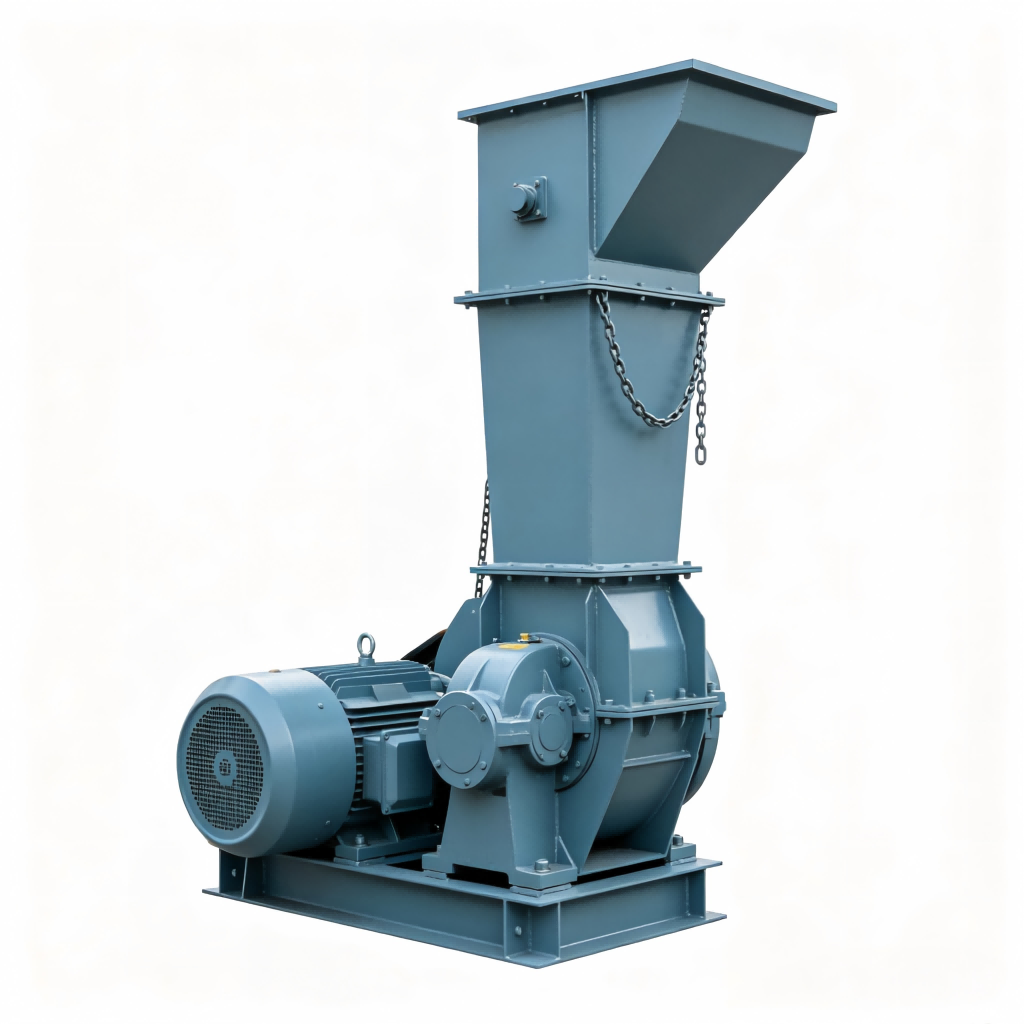

Powder Feeding: Weigh titanium dioxide, calcium carbonate and feed into the disperser by conveyors or manual feeding.
Liquid Feed: Pump resins, solvents and additives into the disperser via sealed pipelines.
High-Speed Dispersing: Mix at 800 r/min for 5 mins, then 1300 r/min for 4 mins for thorough homogenization.
Objective: Grind pigment and filler particles to target fineness, vital for coating quality.

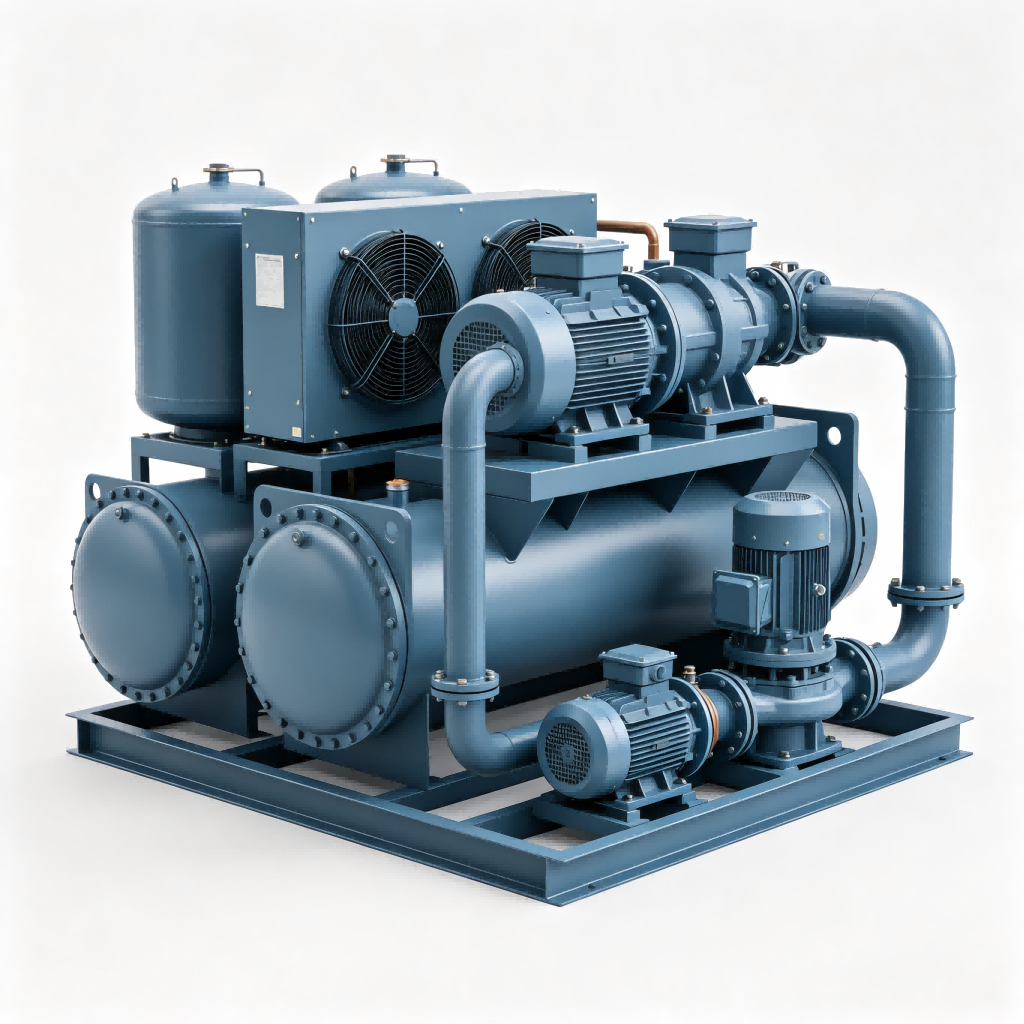

Material Conveyance: Homogenized slurry is pumped into vertical or horizontal sand mills.
Grinding Process: Zirconia beads generate shear force inside sealed high-speed chambers to refine particles. Circulating cooling water controls temperature. Typical grinding cycle takes around 8 minutes to meet fineness standards.
For certain room-temperature coatings, after grinding, the mixture must be transferred to a separate mixing vessel for final blending.

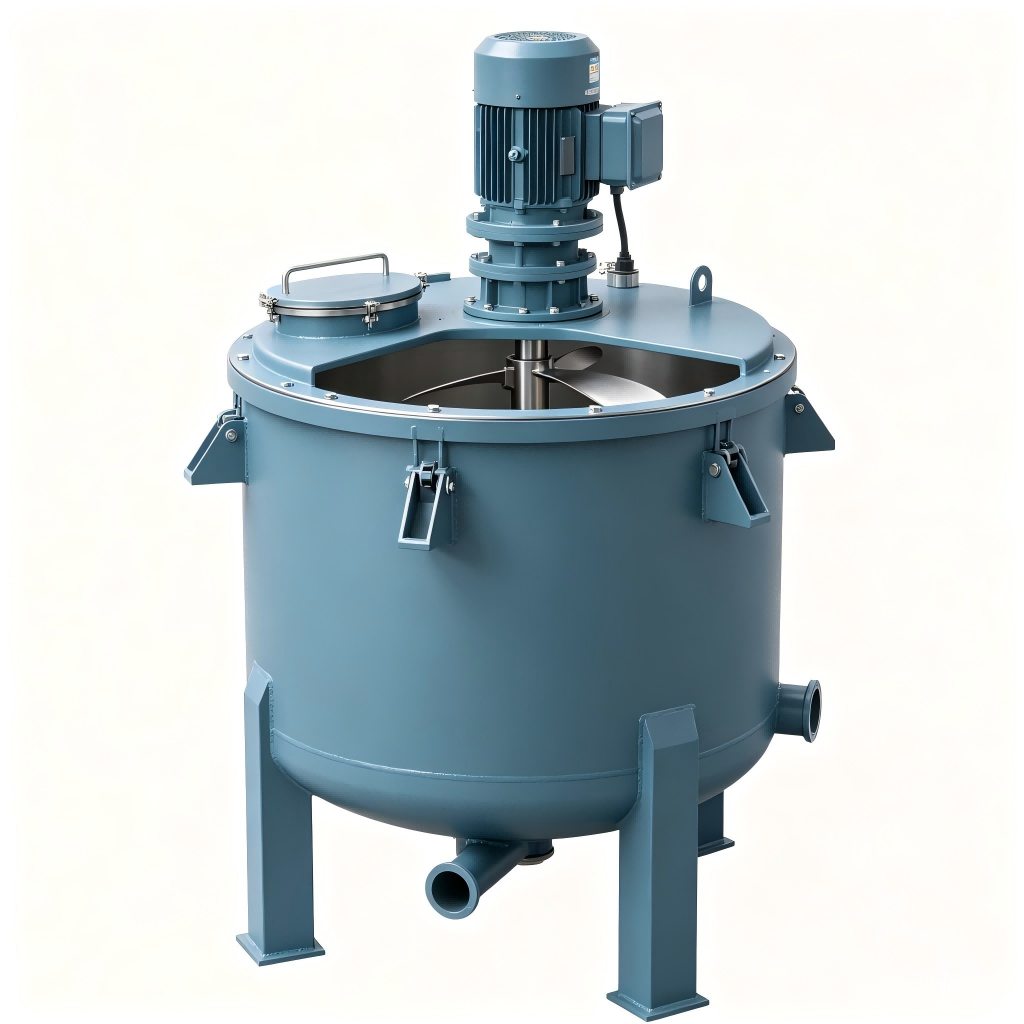

Procedure: Further agitation is performed in the mixing vessel or mixer; if necessary, the color paste is fine-tuned according to color standards to ensure that color, viscosity, and other specifications fully meet the requirements.

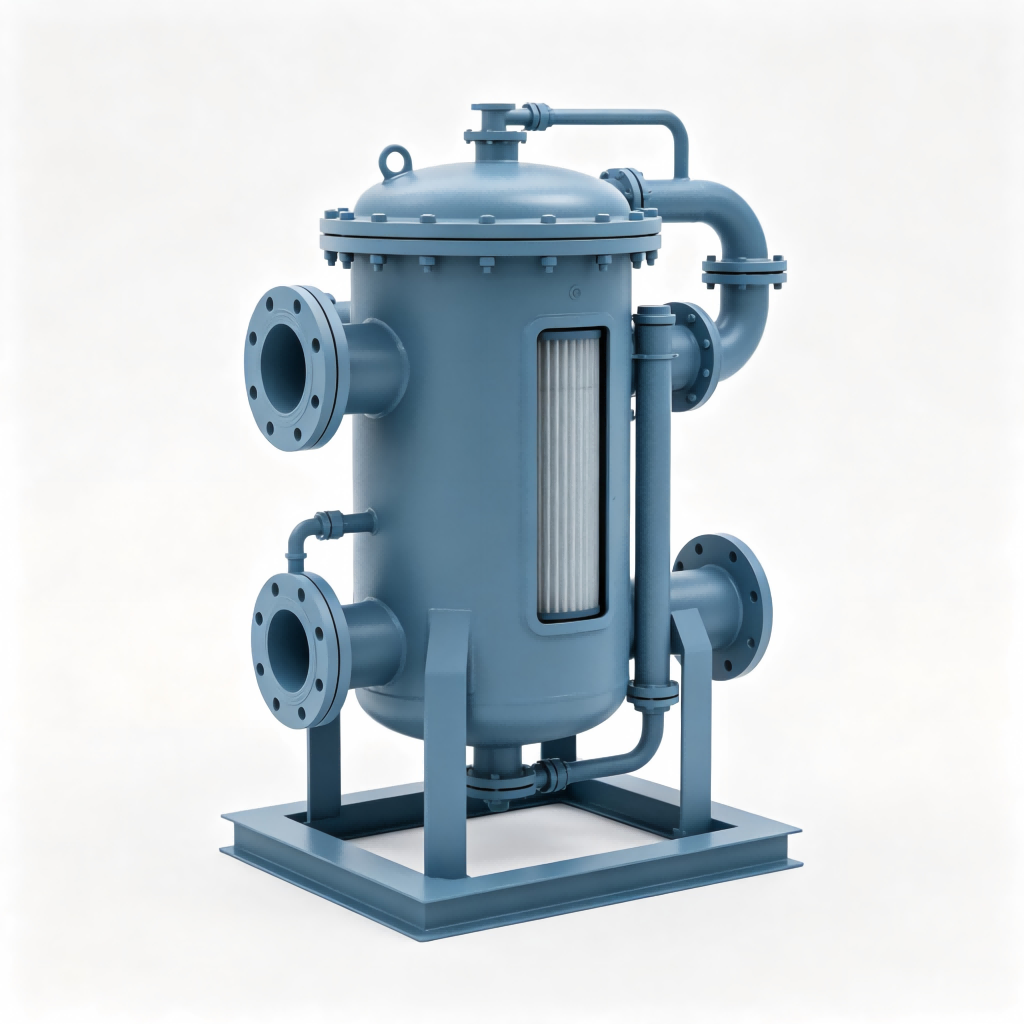

In-process QC ensures finished products meet specifications. After dispersion, grinding and mixing, 0.5kg samples of each batch are tested in the QC lab. Unqualified materials go for rework; only qualified batches proceed. A 50-mesh filter at the discharge outlet removes impurities to prevent spray gun clogging during application.
The filtered finished product is conveyed through sealed piping to the filling and packaging machine.
Filling and Sealing: The packaging machine automatically completes filling, weighing (e.g., standard 25 kg per drum), sealing, and labeling.

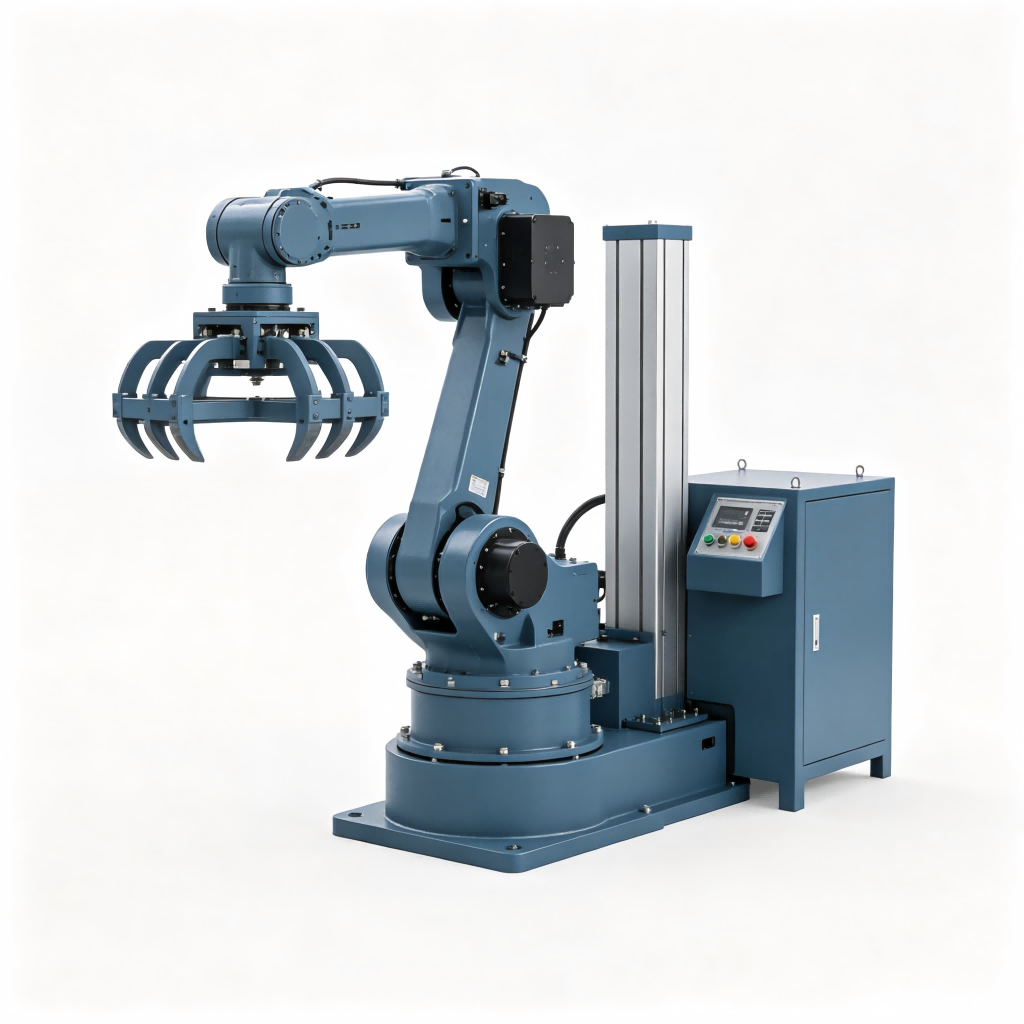

Palletizing and Storage: The sealed finished product drums are automatically palletized onto pallets by a robotic palletizer and then transported to the warehouse via forklift.
After reviewing our project workflow, you will see we deliver tailor-made factory construction solutions instead of generic templates. We balance budget, production targets and local compliance, offering end-to-end support to turn your factory plan into reality.
We design layouts based on your site, budget and capacity demands. Optimise production line arrangement to cut unnecessary investment and match your long-term business goals.
Our service covers planning, equipment selection and on-site guidance. We avoid fragmented cooperation and streamline communication across all construction stages.
Familiar with overseas approval procedures and local operational challenges. We identify potential risks in advance to ensure smooth construction and on-time commissioning.
We cooperate with your team to tackle key challenges affecting coating quality, plant efficiency and profits. Drawing on rich industry experience, we develop exclusive production solutions for your road marking material manufacturing.
Consistent product performance is vital for material manufacturers. Our production process and equipment design strictly control particle fineness, mixing uniformity and impurities, avoiding defective goods and ensuring stable finished product quality.
We act as trusted partners for clients worldwide. Our full-range services include factory planning, equipment setup, technical training and ongoing after-sales maintenance for your production lines.
We offer a one-stop service ranging from equipment installation, commissioning, and training to ongoing support—covering every aspect from equipment operation to process optimization. Our engineers will collaborate with your team on-site or remotely, and we are committed to helping your plant achieve long-term success.
